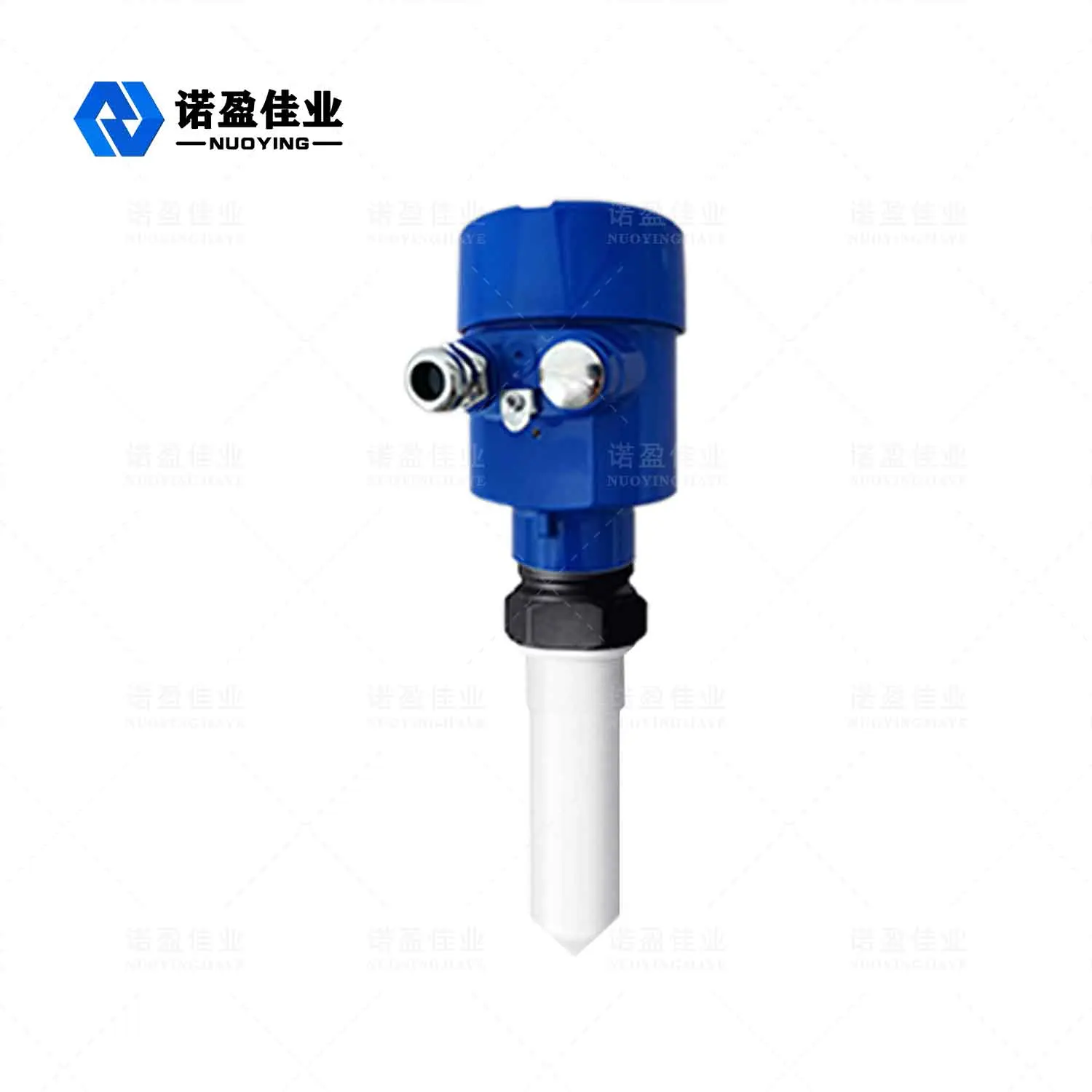

Protection grade IP67 Frequency range 26GHz Radar Level Sensor Transmitter NYRD805

Name: Protection grade IP67 Frequency range 26GHz Radar Level Sensor Transmitter NYRD805
Brand: NUOYING
Price: 209 USD

Best Protection grade IP67 Frequency range 26GHz Radar Level Sensor Transmitter NYRD805 wholesale

Brand Name : NUOYING

Model Number : NYRD-805

Certification : IP67

Place of Origin : Shaanxi, China

MOQ : 1pcs

Price : $209~239/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working days

Packaging Details : 40*30*30CM

Warranty : 1 years

Applications : Liquid, especially for highly corrosive liquids

Measuring range : 10M

Accuracy : ±5mm

Process temperature : -40~130℃

Process pressure : -0.1~0.3MPa

Process connection : Thread/Flange(selective)

Protection class : IP67

Signal output : 4...20mA/HART/RS485/Modbus...

Grade : Industrial

Contact Now

NUOYING 26GHz NYRD805 Fuel Oil Tank Radar Level Sensor Transmitter Measurement

26GHz NYRD805 Radar Level Meter

The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).
The datum of measurement: Spiral bottom surface or sealing surface of flange.
When using radar level timing, make sure that the highest material level cannot enter the measurement blind area.

Product Parameters

Protection grade IP67 Frequency range 26GHz Radar Level Sensor Transmitter NYRD805

Typical application	Liquid with simple process
Antenna material	PTFE
Measuring range	10m
Process connection	Thread, flange (optional)
Process temperature	-40~+130℃
Process pressure	-0.1~0.3MPa
Power supply	24VDC(Two lines, four lines)
Accuracy	＜0.1%F.S

Protection grade IP67 Frequency range 26GHz Radar Level Sensor Transmitter NYRD805 Images
