Meter Level Measuring Tool Tank Liquid Water Monitoring Measurement Device 26GHz Radar Level Sensor gauge Process pressure: -0,1~2.0MPa Process

Name: Meter Level Measuring Tool Tank Liquid Water Monitoring Measurement Device 26GHz Radar Level Sensor gauge Process pressure 0120MPa Process
Brand: NUOYING
Price: 400 USD

Best Meter Level Measuring Tool Tank Liquid Water Monitoring Measurement Device 26GHz Radar Level Sensor gauge Process pressure: -0,1~2.0MPa Process wholesale

Brand Name : NUOYING

Model Number : NYRD-SL

Certification : IP67

Place of Origin : Shaanxi, China

MOQ : 1pcs

Price : $400~500/pcs

Payment Terms : T/T

Supply Ability : 1000pcs per month

Delivery Time : 5-7 working days

Packaging Details : 40*30*30CM

Warranty : 1 years

Applications : Water channel, Reservoirs, rivers, lakes, shoals,etc

Measuring range : 30M,80M

Accuracy : ±3mm

Process temperature : -40~80℃

Process pressure : -0.1~3.0MPa

Process connection : Flange/Bracket(selective)

Protection class : IP67

Signal output : 4...20mA/HART/RS485/Modbus...

Grade : Industrial

Contact Now

Meter Level Measuring Tool Tank Liquid Water Monitoring Measurement Device 26ghz Cement Silo Sensor

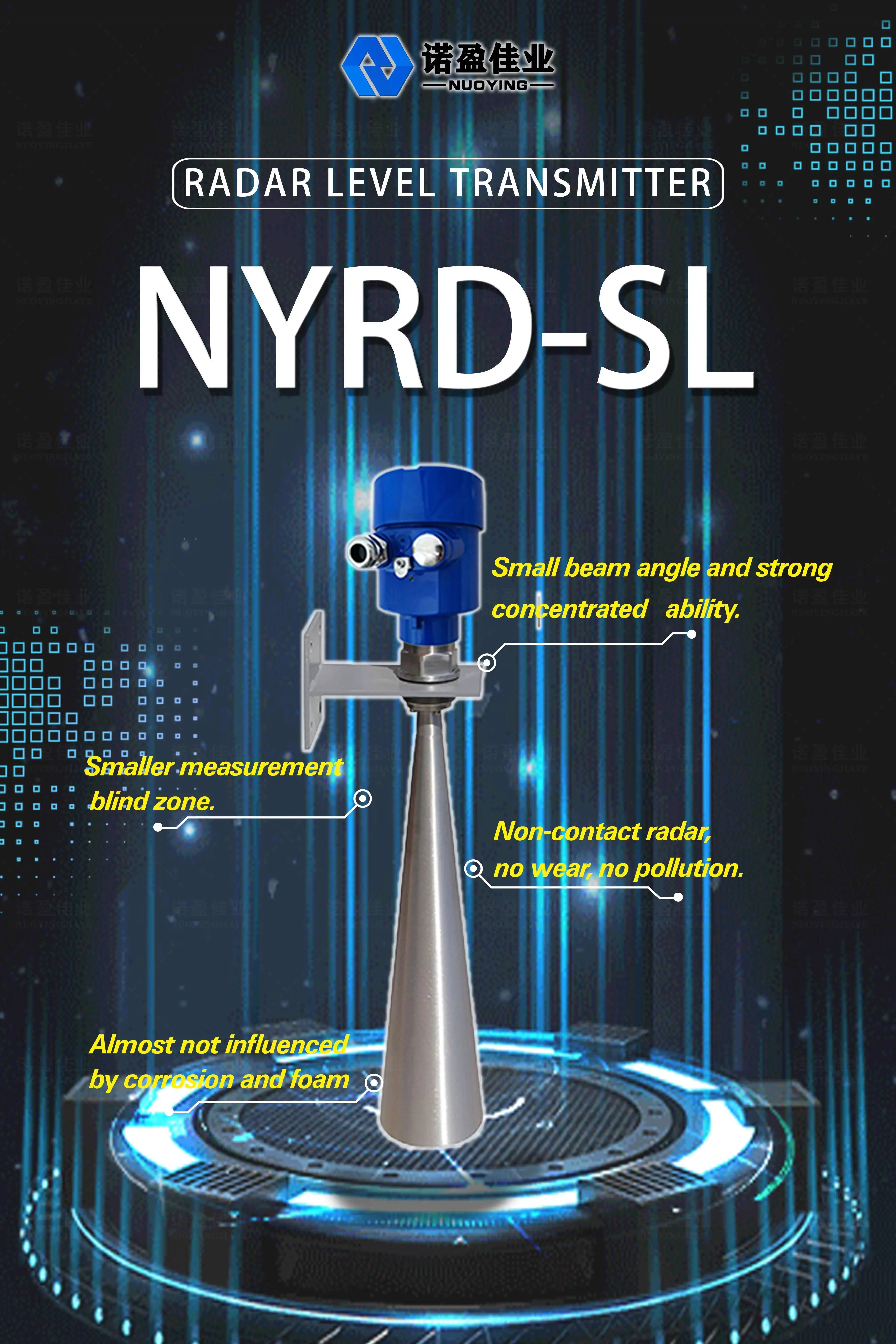

NYRD-SL radar Level Transmitter

Overview

Product Parameters

Meter Level Measuring Tool Tank Liquid Water Monitoring Measurement Device 26GHz Radar Level Sensor gauge Process pressure: -0,1~2.0MPa Process

Typical application	Drains, reservoirs, rivers, lakes, shallows, etc
Antenna material	316L(optional)
Measuring range	30m,80m(optional)
Measuring accuracy	0.05%-0.1%F.S
Power supply	24VDC(Two lines, four lines)
Medium temperature	-40~+80℃
Process connection	Bracket,flange(optional)
Process pressure	0.1~2.0MPa
Explosion-proof grade	Exia II CT6(optional)

Dimensions of the shell structure of the radar level meter (unit: mm)

There are two types of radar level meter:
One is the cast aluminum shell and the other is a stainless steel case.Customized design can be made according
to customer requirement and site condition.

Products Description

26GHz NYRD-SL Radar Level Transmitter Working Principle

Radar level meter NYRD80X series sensor is a 26GHz high-frequency radar level measuring instrument with a maximum measuring distance of 80m. The radar object position antenna emits a narrow microwave pulse that is transmitted downward through the antenna. After the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into object level signal (Because pulses travel so fast, the time it takes for an electromagnetic wave to reach its target and bounce back to the receiver is almost instantaneous).

The datum of measurement: Spiral bottom surface or sealing surface of flange.

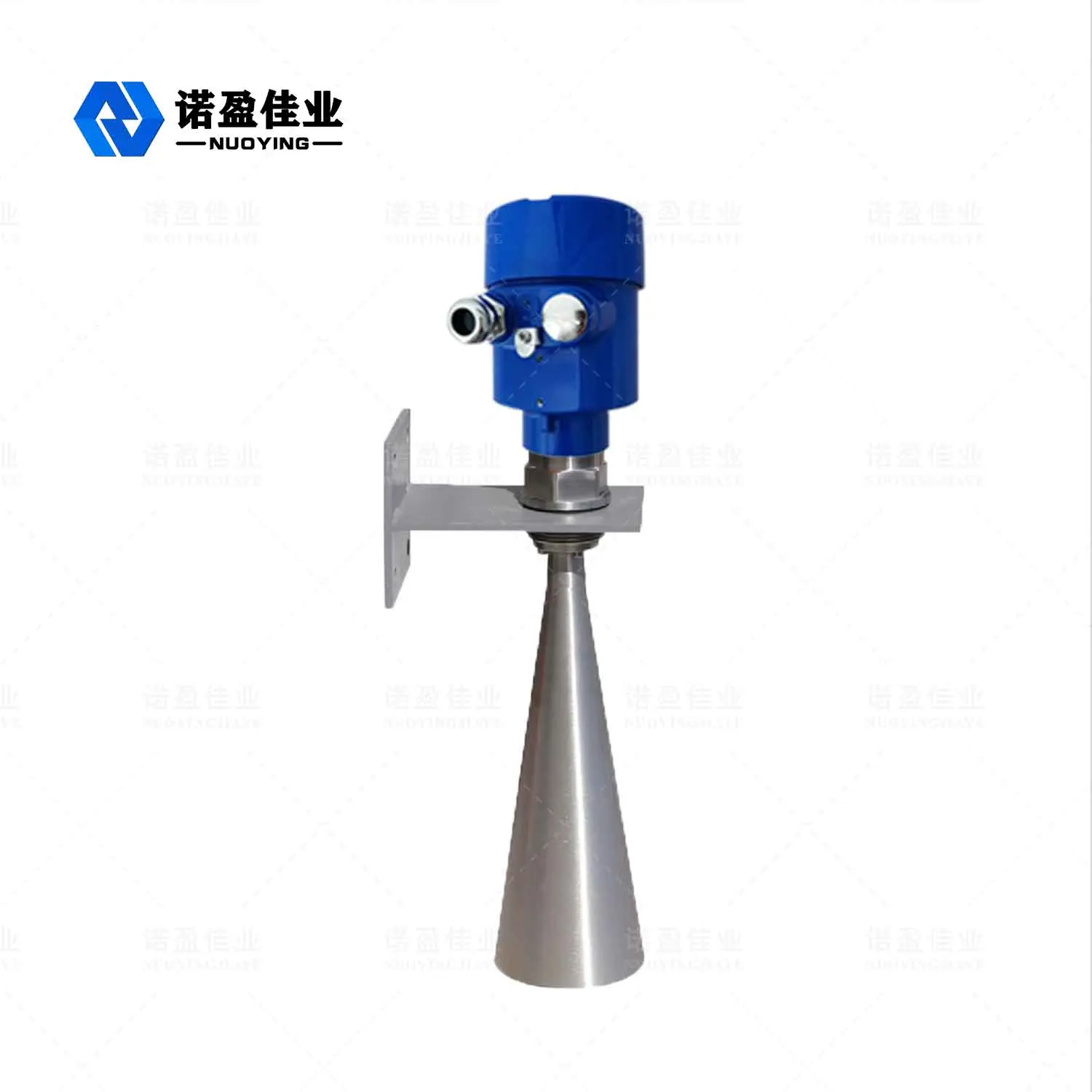

Product details

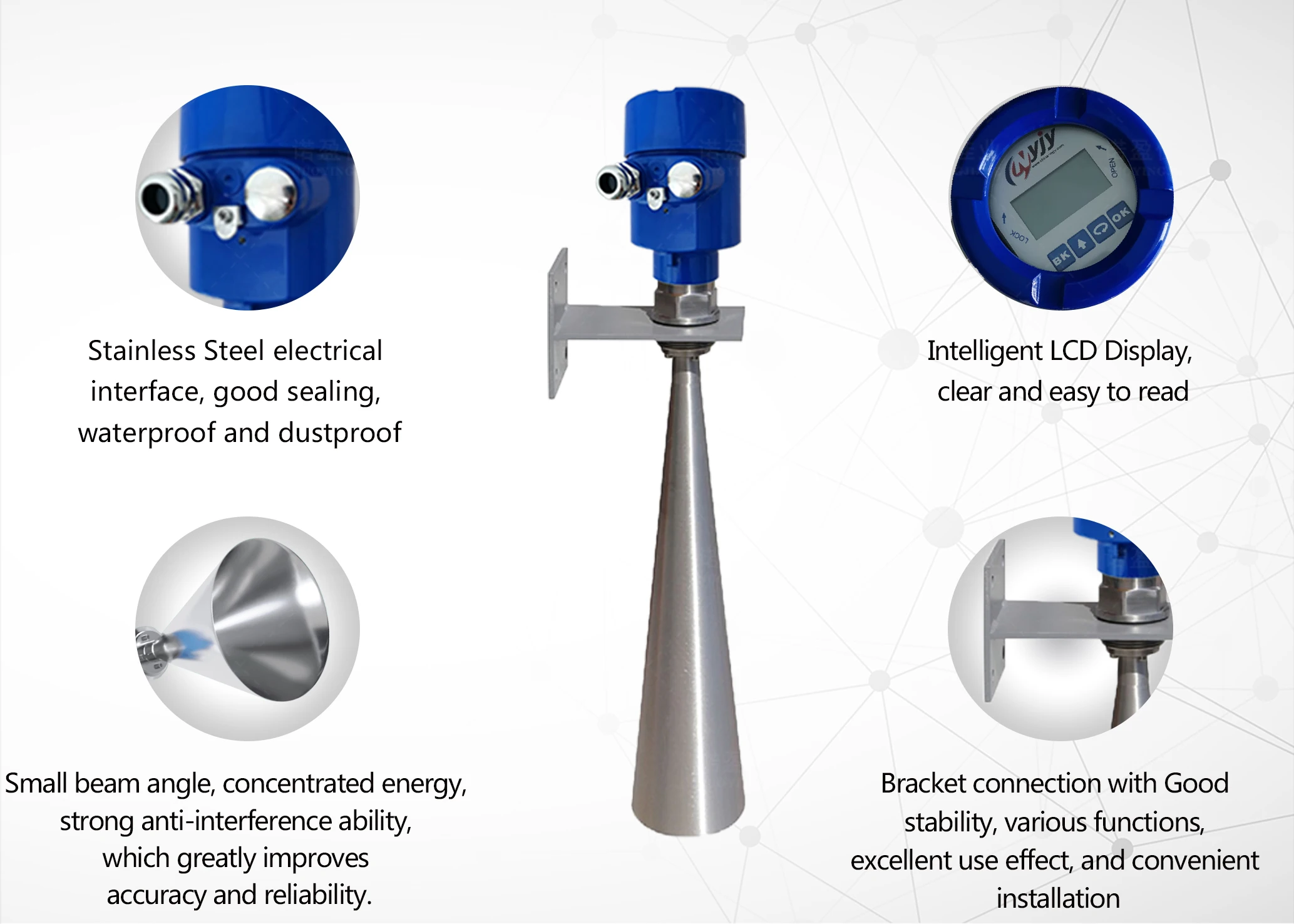

Product feature

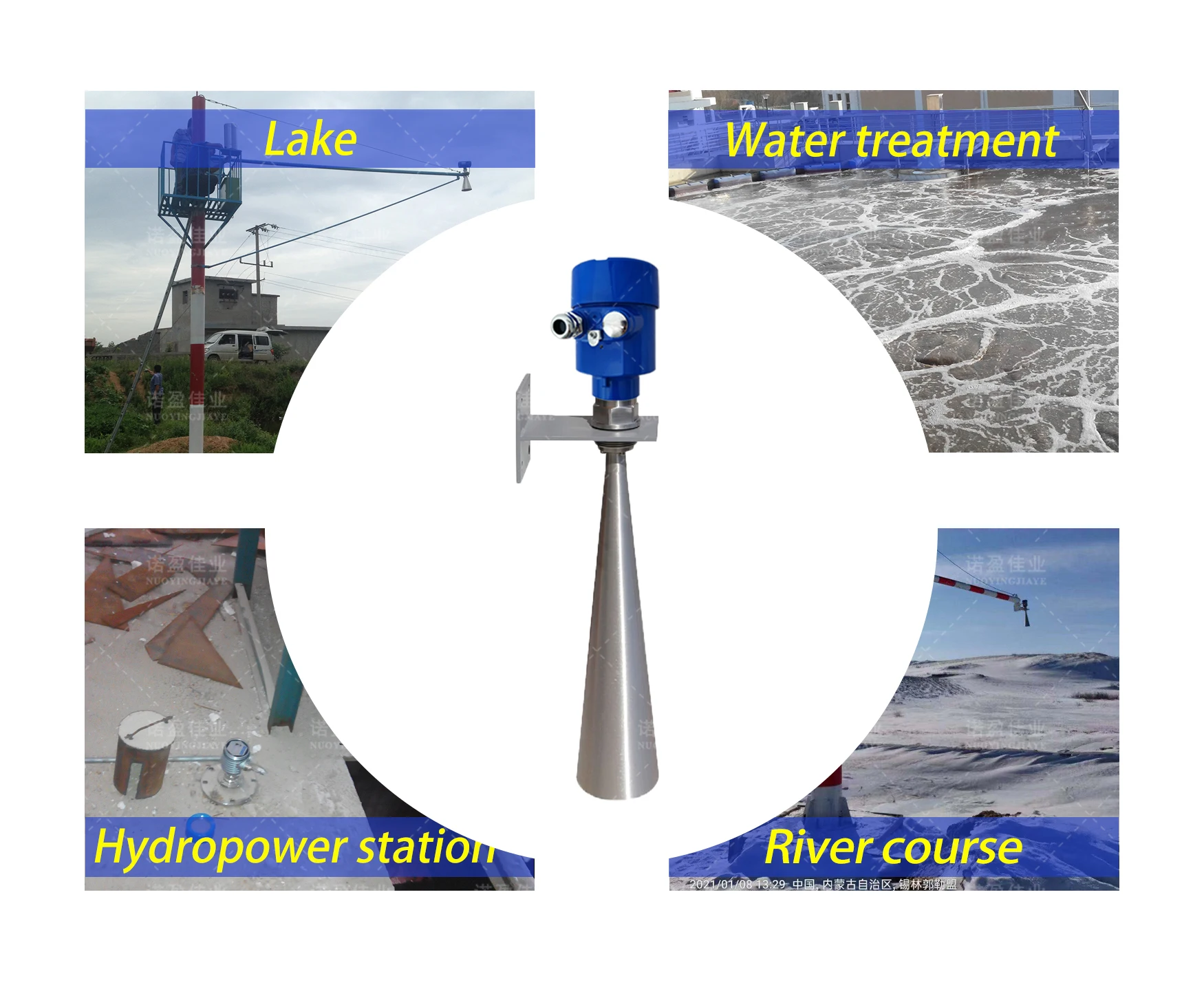

Various application

Cooperation customers

Meter Level Measuring Tool Tank Liquid Water Monitoring Measurement Device 26GHz Radar Level Sensor gauge Process pressure: -0,1~2.0MPa Process Images
